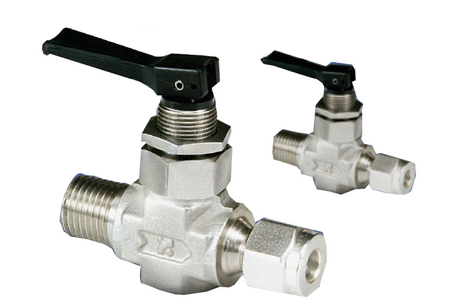

STV Toggle Valves

STV Toggle Valves

Print Page Email Page

Price range: $80.03 through $121.55

SKU: 18690 Category: Valves

Specifications

Available Sizes

STV 1/8 in. Male National Pipe Taper (MNPT) Thread, 300 psi Working Pressure Toggle Valve

$86.52

Description	STV 1/8 in. Male National Pipe Taper (MNPT) Thread, 300 psi Working Pressure Toggle Valve
End Size	44204in
End Size 2	44204in
End Type	Male National Pipe Thread (NPT)
End Type 2	Male National Pipe Thread (NPT)
Flow Coefficient	0.11
Inch/Metric	Inch
Operating Temperature [Max]	93ºC, 200ºF
Operating Temperature [Min]	-28ºC, -20ºF
Orifice	0.080in, 2.0mm
Pressure [Max]	20.6bar, 300psig

Swagelok®	SS-1GM2

STV 1/8 in. Tube Outside Diameter, Angle Pattern, 300 psi Working Pressure Toggle Valve

$118.97

Description	STV 1/8 in. Tube Outside Diameter, Angle Pattern, 300 psi Working Pressure Toggle Valve
End Size	44204in
End Size 2	44204in
End Type	Array
End Type 2	Array
Flow Coefficient	0.11
Inch/Metric	Inch
Operating Temperature [Max]	93ºC, 200ºF
Operating Temperature [Min]	-28ºC, -20ºF
Orifice	0.080in, 2.0mm
Pressure [Max]	20.6bar, 300psig

Swagelok®	SS-1GS2-A

STV 1/4 in. Tube Outside Diameter, 300 psi Working Pressure Toggle Valve

$80.03

Description	STV 1/4 in. Tube Outside Diameter, 300 psi Working Pressure Toggle Valve
End Size	44200in
End Size 2	44200in
End Type	Array
End Type 2	Array
Flow Coefficient	0.2
Inch/Metric	Inch
Operating Temperature [Max]	93ºC, 200ºF
Operating Temperature [Min]	-28ºC, -20ºF
Orifice	0.125in, 3.2mm
Pressure [Max]	20.6bar, 300psig

Swagelok®	SS-1GS4

STV 1/4 in. Tube Outside Diameter, Angle Pattern, 300 psi Working Pressure Toggle Valve

$101.97

Description	STV 1/4 in. Tube Outside Diameter, Angle Pattern, 300 psi Working Pressure Toggle Valve
End Size	44200in
End Size 2	44200in
End Type	Array
End Type 2	Array
Flow Coefficient	0.2
Inch/Metric	Inch
Operating Temperature [Max]	93ºC, 200ºF
Operating Temperature [Min]	-28ºC, -20ºF
Orifice	0.125in, 3.2mm
Pressure [Max]	20.6bar, 300psig

Swagelok®	SS-1GS4-A

STV 1/8 in. Tube Outside Diameter, Angle Pattern, 300 psi Working Pressure Toggle Valve

$121.55
