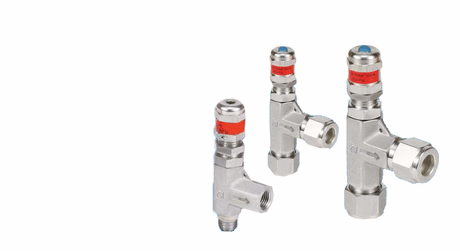

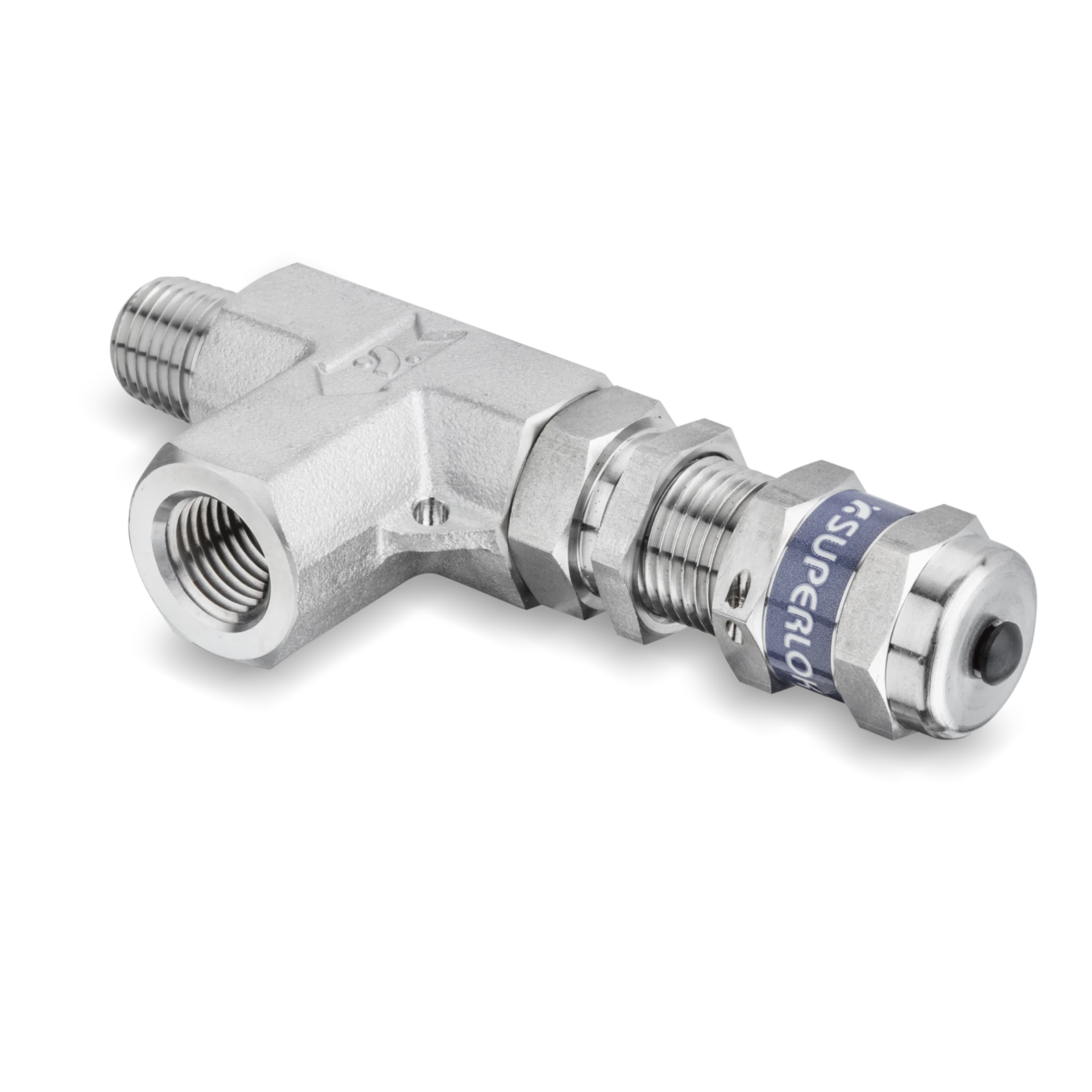

SRVL Low Pressure Relief Valves
SRVL Low Pressure Relief Valves
Price range: $205.90 through $359.47
See individual part details below
Access our SRVL low pressure relief valve series designed for 300 psi applications. These compact low pressure relief valves feature adjustable cracking pressure and lock wire security. Browse below to request a quote for your specific component.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| Cracking Pressure Range | 0.69 to 17.2bar, 10.0 to 250psig |
|---|---|
| Inch/Metric | Inch |
| Operating Pressure [Max] | 20.6bar, 300psig |
| Orifice | 4.8mm |
| Superlok Part Type | High Pressure Relief Valves |
Available Sizes
SRVL-MF-4N SRVL Low Pressure Relief Valves
SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, 300 psi Low Pressure Relief Valve
$205.90
SRVL-MF-4N-KZ SRVL Low Pressure Relief Valves
SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, FFKM (Perfluoroelastomer) O-Ring, 300 psi Low Pressure Relief Valve
$359.47
SRVL-MF-4N-N SRVL Low Pressure Relief Valves
SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Buna N O-Ring, 300 psi Low Pressure Relief Valve
$205.90
SRVL-MF-8N SRVL Low Pressure Relief Valves
SRVL 1/2 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, 300 psi Low Pressure Relief Valve
$244.85
SRVL-MF-8N-N SRVL Low Pressure Relief Valves
SRVL 1/2 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Buna N O-Ring, 300 psi Low Pressure Relief Valve
$244.85
SRVL-S-4 SRVL Low Pressure Relief Valves
SRVL 1/4 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve
$216.30
SRVL-S-4-N SRVL Low Pressure Relief Valves
SRVL 1/4 in. Outside Diameter, Angle Pattern, Buna N O-Ring, 300 psi Low Pressure Relief Valve
Price range: $205.90 through $359.47
SRVL-S-6 SRVL Low Pressure Relief Valves
SRVL 3/8 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve
$243.34
SRVL-S-6-N SRVL Low Pressure Relief Valves
SRVL 3/8 in. Outside Diameter, Angle Pattern, Buna N O-Ring, 300 psi Low Pressure Relief Valve
$243.34
SRVL-S-8 SRVL Low Pressure Relief Valves
SRVL 1/2 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve
$263.89
