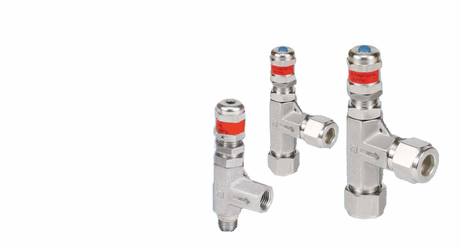

SRVH High Pressure Relief Valves

Price range: $222.79 through $370.80

Access our SRVH high pressure relief valve featuring adjustable cracking pressure settings. Our precision pressure relief valves include secure lock wire and compact designs. Browse below to request a quote for your specific component.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18591 Category: Relief Valves

Click here for more info

Specifications

Cracking Pressure Range	15.5 to 414bar, 225 to 6000psig
Inch/Metric	Inch
Operating Pressure [Max]	413bar, 6000psig
Orifice	4.8mm
Superlok Part Type	High Pressure Relief Valves

Available Sizes

SRVH-MF-4N SRVH High Pressure Relief Valves

1/4 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT)Thread, No Spring, 6000 psi High Pressure Relief Valve

Price range: $222.79 through $370.80

See individual part details below

Dimension H	99.5mm
Dimension L1	30.0mm
Dimension L2	32.2mm

Swagelok®	SS-4R3A5

SRVH-MF-4N-KZ SRVH High Pressure Relief Valves

1/4 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread, No Spring, FFKM (Perfluoroelastomer) O-Ring, 6000 psi High Pressure Relief Valve

$370.80

Dimension H	99.5mm
Dimension L1	30.0mm
Dimension L2	32.2mm

Swagelok®	SS-4R3A5-KZ

SRVH-MF-4N-N SRVH High Pressure Relief Valves

1/4 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. No Spring, Buna N O-Ring, 6000 psi High Pressure Relief Valve

Price range: $222.79 through $370.80

See individual part details below

Dimension H	99.5mm
Dimension L1	30.0mm
Dimension L2	32.2mm

Swagelok®	SS-4R3A5-BU

SRVH-MF-6N SRVH High Pressure Relief Valves

3/8 in. Male National Pipe Taper (MNPT) Thread x 3/8 in. Female National Pipe Taper (FNPT) Thread, No Spring, 6000 psi High Pressure Relief Valve

Price range: $222.79 through $370.80

See individual part details below

Dimension H	99.5mm
Dimension L1	34.5mm
Dimension L2	32.5mm

Swagelok®	SS-

SRVH-MF-8N SRVH High Pressure Relief Valves

1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, No Spring, 6000 psi High Pressure Relief Valve

Price range: $222.79 through $370.80

See individual part details below

Dimension H	103.0mm
Dimension L1	38.0mm
Dimension L2	35.7mm

Swagelok®	SS-R4M8-F8

SRVH-MF-8N-N SRVH High Pressure Relief Valves

1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, No Spring, Buna N O-Ring, 6000 psi High Pressure Relief Valve

Price range: $222.79 through $370.80

See individual part details below

Dimension H	103.0mm
Dimension L1	38.0mm
Dimension L2	35.7mm

Swagelok®	SS-R4M8-F8-BU

SRVH-MS-8N-8 SRVH High Pressure Relief Valves

1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Outside Diameter, No Spring, 6000 psi High Pressure Relief Valve

$222.79

Dimension H	114.0mm
Dimension L1	46.7mm
Dimension L2	46.7mm

Swagelok®	SS-R4M8-S8

SRVH-S-4 SRVH High Pressure Relief Valves

1/4 in. Outside Diameter, No Spring, 6000 psi High Pressure Relief Valve

Price range: $222.79 through $370.80

See individual part details below

Dimension H	104.6mm
Dimension L1	38.7mm
Dimension L2	37.3mm

Swagelok®	SS-4R3A

SRVH-S-4-E SRVH High Pressure Relief Valves

1/4 in. Outside Diameter, No Spring, 6000 psi High Pressure Relief Valve

Price range: $222.79 through $370.80

See individual part details below

Dimension H	104.6mm
Dimension L1	38.7mm
Dimension L2	37.3mm

Swagelok®	SS-4R3A-EP

SRVH-S-4-N SRVH High Pressure Relief Valves

1/4 in. Outside Diameter, Angle Pattern, No Spring, Buna N O-Ring, 6000 psi High Pressure Relief Valve

Price range: $222.79 through $370.80

See individual part details below

Dimension H	104.6mm
Dimension L1	38.7mm
Dimension L2	37.3mm

Swagelok®	SS-4R3A-BU

SRVH-S-6 SRVH High Pressure Relief Valves

3/8 in. Outside Diameter, No Spring, 6000 psi High Pressure Relief Valve

Price range: $222.79 through $370.80

See individual part details below

Dimension H	111.7mm
Dimension L1	44.4mm
Dimension L2	44.4mm

Swagelok®	SS-

SRVH-S-6-N SRVH High Pressure Relief Valves

3/8 in. Outside Diameter, No Spring, Buna N O-Ring, 6000 psi High Pressure Relief Valve

Price range: $222.79 through $370.80

See individual part details below

Dimension H	111.7mm
Dimension L1	44.4mm
Dimension L2	44.4mm

Swagelok®	SS-

SRVH-S-8 SRVH High Pressure Relief Valves

1/2 in. Outside Diameter, No Spring, 6000 psi High Pressure Relief Valve

Price range: $222.79 through $370.80

See individual part details below

Dimension H	114.0mm
Dimension L1	46.7mm
Dimension L2	46.7mm

Swagelok®	SS-R4S8

SRVH-S-8-E SRVH High Pressure Relief Valves

1/2 in. Outside Diameter, No Spring, 6000 psi High Pressure Relief Valve

$243.34

Dimension H	114.0mm
Dimension L1	46.7mm
Dimension L2	46.7mm

Swagelok®	SS-R4S8-EP

SRVH-S-8-N SRVH High Pressure Relief Valves

1/2 in. Outside Diameter, No Spring, Buna N O-Ring, 6000 psi High Pressure Relief Valve

Price range: $222.79 through $370.80

See individual part details below

Cracking Pressure Range	15.5 to 414bar, 225 to 6000psig
Description	1/4 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT)Thread, No Spring, 6000 psi High Pressure Relief Valve
End Size	44200mm
End Size 2	44200mm
End Type	Male National Pipe Thread (NPT)
End Type 2	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Material	316 Stainless Steel
Operating Pressure [Max]	413bar, 6000psig
Orifice	4.8mm

Cracking Pressure Range	15.5 to 414bar, 225 to 6000psig
Description	1/4 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread, No Spring, FFKM (Perfluoroelastomer) O-Ring, 6000 psi High Pressure Relief Valve
End Size	44200mm
End Size 2	44200mm
End Type	Male National Pipe Thread (NPT)
End Type 2	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Material	316 Stainless Steel
Operating Pressure [Max]	413bar, 6000psig
Orifice	4.8mm

Cracking Pressure Range	15.5 to 414bar, 225 to 6000psig
Description	1/4 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. No Spring, Buna N O-Ring, 6000 psi High Pressure Relief Valve
End Size	44200mm
End Size 2	44200mm
End Type	Male National Pipe Thread (NPT)
End Type 2	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Material	316 Stainless Steel
Operating Pressure [Max]	413bar, 6000psig
Orifice	4.8mm

Cracking Pressure Range	15.5 to 414bar, 225 to 6000psig
Description	3/8 in. Male National Pipe Taper (MNPT) Thread x 3/8 in. Female National Pipe Taper (FNPT) Thread, No Spring, 6000 psi High Pressure Relief Valve
End Size	44263mm
End Size 2	44263mm
End Type	Male National Pipe Thread (NPT)
End Type 2	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Material	316 Stainless Steel
Operating Pressure [Max]	413bar, 6000psig
Orifice	4.8mm

Cracking Pressure Range	15.5 to 414bar, 225 to 6000psig
Description	1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, No Spring, 6000 psi High Pressure Relief Valve
End Size	44198mm
End Size 2	44198mm
End Type	Male National Pipe Thread (NPT)
End Type 2	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Material	316 Stainless Steel
Operating Pressure [Max]	413bar, 6000psig
Orifice	4.8mm
