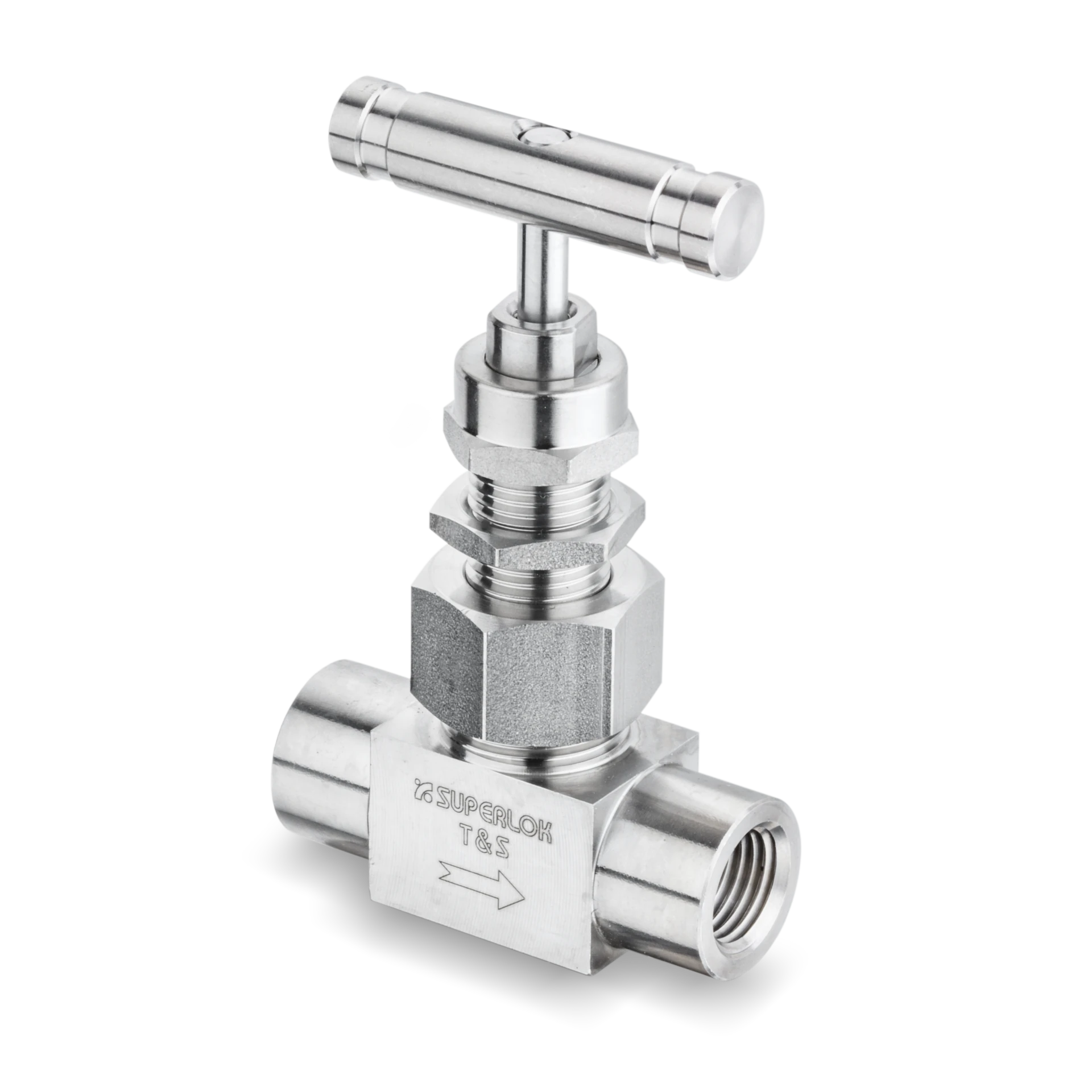

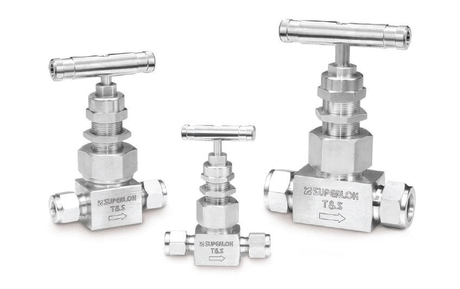

SUNV Union Bonnet Needle Valves
SUNV Union Bonnet Needle Valves
Price range: $129.78 through $465.05
See individual part details below

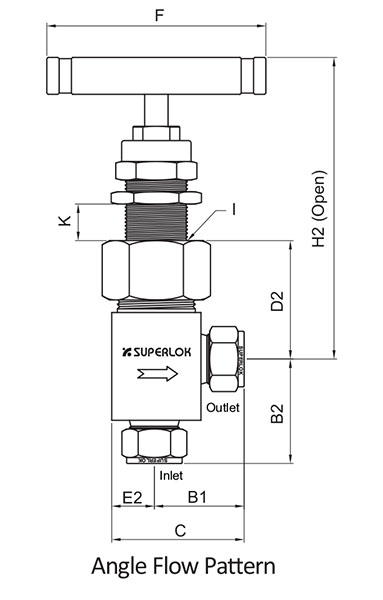

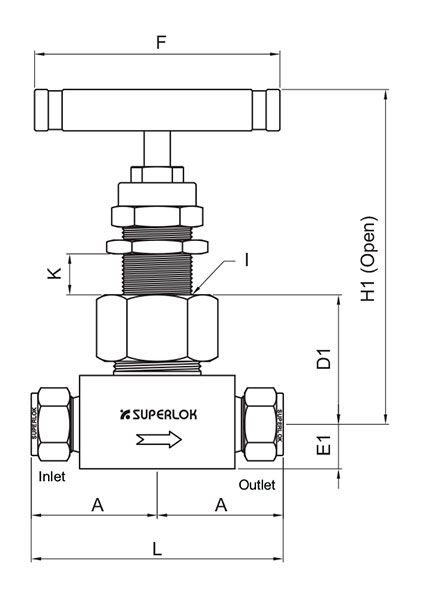

Access our SUNV union bonnet needle valve featuring low-torque, panel-mountable design. Our precision union bonnet needle valves offer straight and angle flow patterns for your fluid system. Browse below to request a quote for your component below.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| Inch/Metric | Inch |
|---|---|
| Superlok Part Type | Needle Valve |
| Temperature Rating with Graphite Packing | -53 to 648ºC, -65 to 1200ºF |
| Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip | -53 to 93ºC, -65 to 200ºF |
| Temperature Rating with Polyether Ether Ketone (PEEK) Packing | -53 to 315ºC, -65 to 600ºF |
Available Sizes
SUNV1-F-4N SUNV Union Bonnet Needle Valves
SUNV 1/4 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve
$129.78
SUNV1-F-4N-GR SUNV Union Bonnet Needle Valves
SUNV 1/4 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve
$136.25
SUNV1-S-4 SUNV Union Bonnet Needle Valves
SUNV 1/4 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$138.43
SUNV1-S-4-GR SUNV Union Bonnet Needle Valves
SUNV 1/4 in. Outside Diameter, Grafoil Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$143.84
SUNV2-S-6 SUNV Union Bonnet Needle Valves
SUNV 3/8 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$192.72
SUNV2-S-6-GR SUNV Union Bonnet Needle Valves
SUNV 3/8 in. Outside Diameter, Grafoil Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$199.00
SUNV2-S-8 SUNV Union Bonnet Needle Valves
SUNV 1/2 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$205.05
SUNV2-S-8-GR SUNV Union Bonnet Needle Valves
SUNV 1/2 in. Outside Diameter, Grafoil Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$215.87
SUNV3-F-8N SUNV Union Bonnet Needle Valves
SUNV 1/2 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve
$281.19
SUNV3-F-8N-GR SUNV Union Bonnet Needle Valves
SUNV 1/2 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve
$287.37
SUNV3-F-12N SUNV Union Bonnet Needle Valves
SUNV 3/4 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve
$415.30
SUNV3-F-16N SUNV Union Bonnet Needle Valves
SUNV 1 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve
$465.05
SUNV3-MF-8N SUNV Union Bonnet Needle Valves
SUNV 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$302.82
SUNV3-MF-12N SUNV Union Bonnet Needle Valves
SUNV 3/4 in. Male National Pipe Taper (MNPT) Thread x 3/4 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$427.79
SUNV3-S-8-PE SUNV Union Bonnet Needle Valves
SUNV 1/2 in. Outside Diameter, Peek Packing, -65 to 600 ºF Temperature Rating, 6000 psi Union Bonnet Needle Valve
Price range: $129.78 through $465.05
SUNV3-S-16 SUNV Union Bonnet Needle Valves
SUNV 1 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
$346.08
