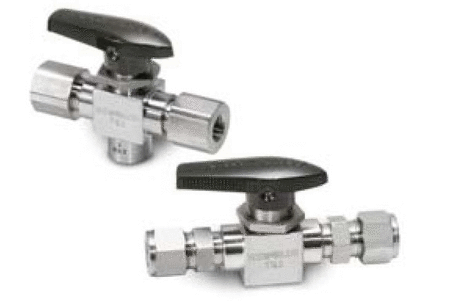

SBT Series Ball Valves

Price range: $184.74 through $292.01

Access our complete line of ball valves designed for reliable flow control. Our selection ensures quarter-turn on-off operation. Browse below to instantly request a quote or purchase the ball valves you need.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18523 Category: Ball Valves

Click here for more info

Specifications

Inch/Metric	Inch
Orifice	4.8mm
Superlok Part Type	Ball Valve

Available Sizes

SBT2-F-4N SBT Series Ball Valves

SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve

$184.74

Dimension A	74.7mm
Dimension B	37.3mm

Cv Coefficient	1.0
Description	SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve
End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	4.8mm
Pressure Rating	bar, psig
Temperature Rating	ºC, ºF

Swagelok®	SS-83KF4

SBT2-S-4 SBT Series Ball Valves

SBT 1/4 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve

$192.24

Dimension A	105mm
Dimension B	52.6mm

Cv Coefficient	1.6
Description	SBT 1/4 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve
End Size	44200in
End Type	Array
Inch/Metric	Inch
Orifice	4.8mm
Pressure Rating	bar, psig
Temperature Rating	ºC, ºF

Swagelok®	SS-83KS4

SBT2-S-4-CNG SBT Series Ball Valves

SBT 1/4 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve

$205.49

Dimension A	105mm
Dimension B	52.6mm

Cv Coefficient	1.6
Description	SBT 1/4 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve
End Size	44200in
End Type	Array
Inch/Metric	Inch
Orifice	4.8mm
Pressure Rating	bar, psig
Temperature Rating	ºC, ºF

Swagelok®	SS-L83KS4

SBT2-S-6 SBT Series Ball Valves

SBT 3/8 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve

$205.90

Dimension A	112mm
Dimension B	55.6mm

Cv Coefficient	1.4
Description	SBT 3/8 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve
End Size	44263in
End Type	Array
Inch/Metric	Inch
Orifice	4.8mm
Pressure Rating	bar, psig
Temperature Rating	ºC, ºF

Swagelok®	SS-83KS6

SBT2-S-6-CNG SBT Series Ball Valves

SBT 3/8 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve

$227.12

Dimension A	112mm
Dimension B	55.6mm

Cv Coefficient	1.4
Description	SBT 3/8 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve
End Size	44263in
End Type	Array
Inch/Metric	Inch
Orifice	4.8mm
Pressure Rating	bar, psig
Temperature Rating	ºC, ºF

Swagelok®	SS-L83KS6

SBT2-S-8 SBT Series Ball Valves

SBT 1/2 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve

$226.60

Dimension A	117mm
Dimension B	58.4mm

Cv Coefficient	1.8
Description	SBT 1/2 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve
End Size	44198in
End Type	Array
Inch/Metric	Inch
Orifice	4.8mm
Pressure Rating	bar, psig
Temperature Rating	ºC, ºF

Swagelok®	SS-83KS8

SBT2-S-8-CNG SBT Series Ball Valves

SBT 1/2 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve

$248.75

Dimension A	117mm
Dimension B	58.4mm

Cv Coefficient	1.8
Description	SBT 1/2 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve
End Size	44198in
End Type	Array
Inch/Metric	Inch
Orifice	4.8mm
Pressure Rating	bar, psig
Temperature Rating	ºC, ºF

Swagelok®	SS-L83KS8

SBT3-F-4N-CNG SBT Series Ball Valves

SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, -40 to 250 ºF, 6000 psig Pressure Rating, Peek Seats, Buna-N O-Ring Ball Valve

$246.58

Dimension A	74.7mm
Dimension B	37.3mm

Cv Coefficient	0.75
Description	SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, -40 to 250 ºF, 6000 psig Pressure Rating, Peek Seats, Buna-N O-Ring Ball Valve
End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	4.8mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-17 to 232ºC, 0 to 450ºF

Swagelok®	SS-L83XPF4

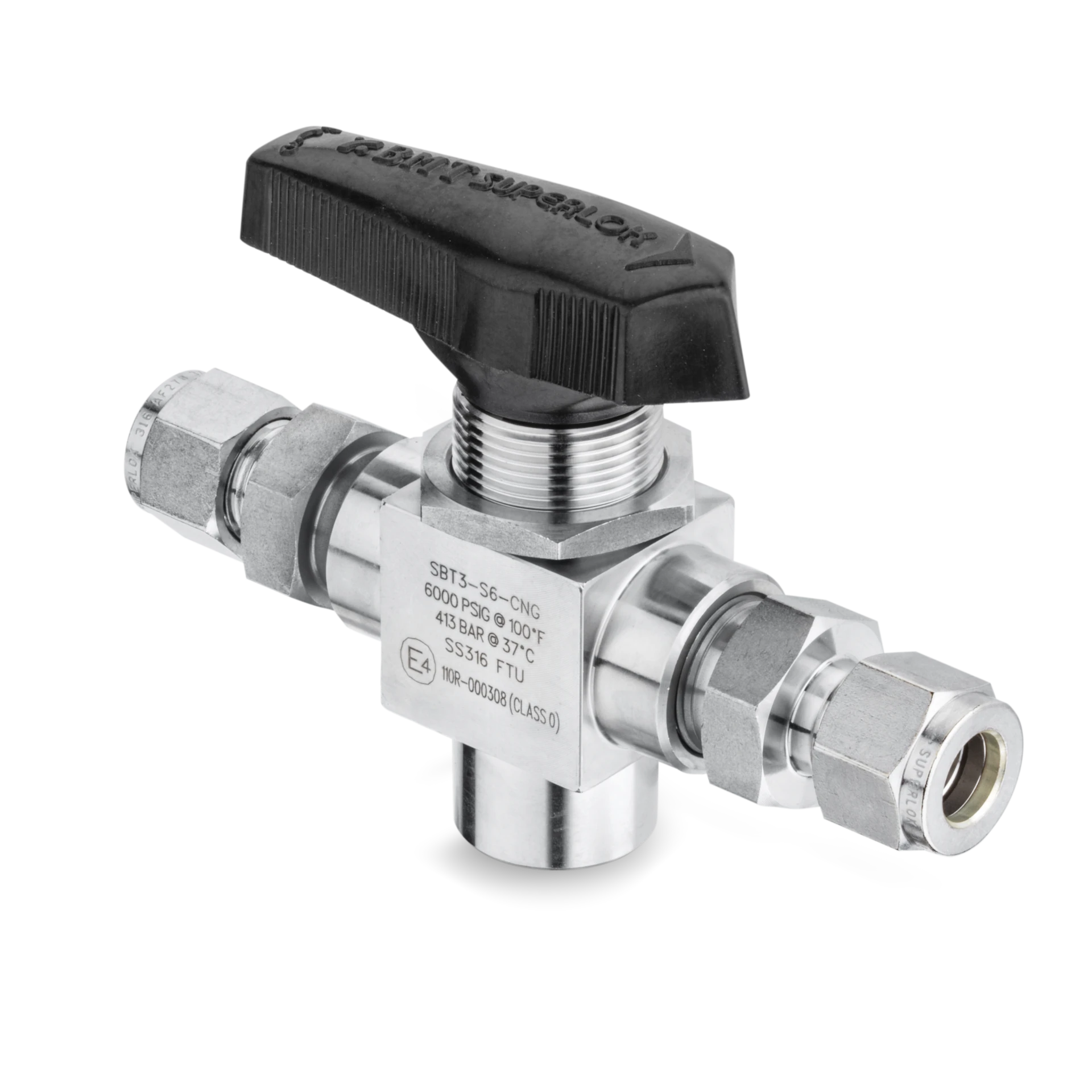

SBT3-S-6-CNG SBT Series Ball Valves

SBT 3/8 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Polychlorotrifluoroethylene (PCTFE) Seats, Buna O-Ring Ball Valve

$255.23

Dimension A	112mm
Dimension B	55.6mm

Cv Coefficient	0.75
Description	SBT 3/8 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Polychlorotrifluoroethylene (PCTFE) Seats, Buna O-Ring Ball Valve
End Size	44263in
End Type	Array
Inch/Metric	Inch
Orifice	4.8mm
Pressure Rating	103bar, 1500psig
Temperature Rating	-17 to 121ºC, 0 to 250ºF

Swagelok®	SS-L83XPS6

SBTH3-F-4N SBT Series Ball Valves

SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, 3-Way, Peek Seats, 0 to 450 ºF, 10,000 psi Pressure Rating Ball Valve

$286.38

Dimension A	99.8mm
Dimension B	50.0mm

Cv Coefficient	0.75
Description	SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, 3-Way, Peek Seats, 0 to 450 ºF, 10,000 psi Pressure Rating Ball Valve
End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	4.8mm
Pressure Rating	413 to 689bar, 6000 to 10000psig
Temperature Rating	-17 to 232ºC, 0 to 450ºF

Swagelok®	SS-83XPF4

SBTH3-S-4 SBT Series Ball Valves

SBT 1/4 in. Tube Outside Diameter D 3-Way, Peek Seats, 0 to 450 ºF, 10,000 psi Pressure Rating Ball Valve

$292.01
