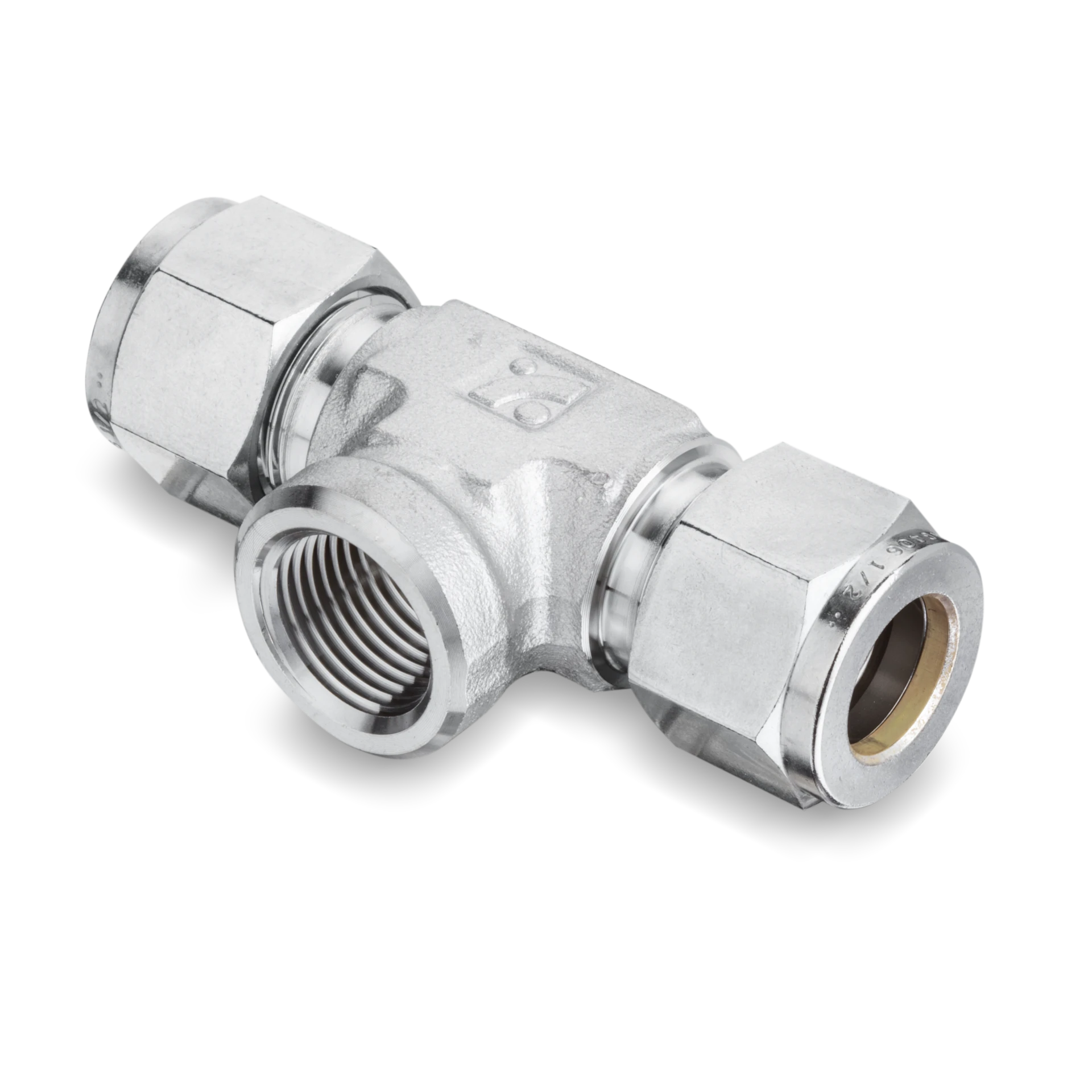

SFBT Female Branch Tees
SFBT Female Branch Tees
Price range: $27.18 through $161.52
See individual part details below
Access our complete line of female branch tee fitting solutions for three-way flow connections. Our selection enables versatile system configurations for your fluid system. Browse below to instantly request quotes or purchase the component you need.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

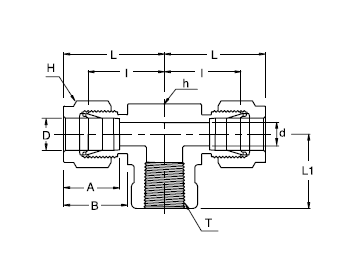

Specifications
| End Type | National Pipe Thread (NPT) |
|---|---|
| Industry Standards/Certifications | American National Standards Institute (ANSI) B1.20.1 |
| Superlok Part Type | Female Tee |
Available Sizes
SFBT 2-2N SFBT Female Branch Tees
SFBT 1/8 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$29.53
SFBT 4-2N SFBT Female Branch Tees
SFBT 1/4 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$27.18
SFBT 4-4N SFBT Female Branch Tees
SFBT 1/4 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$31.63
SFBT 6-4N SFBT Female Branch Tees
SFBT 3/8 in. Tube Outside Diameter D x 1/4in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$32.64
SFBT 6-6N SFBT Female Branch Tees
SFBT 3/8 in. Tube Outside Diameter D x 3/8 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$36.48
SFBT 6-8N SFBT Female Branch Tees
SFBT 3/8 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$42.89
SFBT 6M-4N SFBT Female Branch Tees
SFBT 6 mm Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$32.30
SFBT 8-4N SFBT Female Branch Tees
SFBT 1/2 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$49.46
SFBT 8-6N SFBT Female Branch Tees
SFBT 1/2 in. Tube Outside Diameter D x 3/8 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$46.51
SFBT 8-8N SFBT Female Branch Tees
SFBT 1/2 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$52.92
SFBT 12-8N SFBT Female Branch Tees
SFBT 3/4 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$91.34
SFBT 12-12N SFBT Female Branch Tees
SFBT 3/4 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$91.39
SFBT 16-12N SFBT Female Branch Tees
SFBT 1 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$144.82
SFBT 16-16N SFBT Female Branch Tees
SFBT 1 in. Tube Outside Diameter D x 1 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee
$161.52
