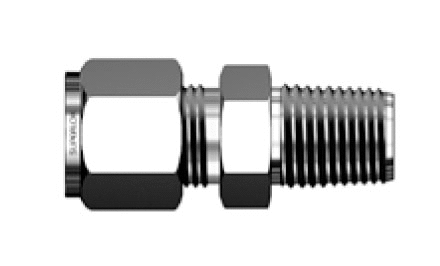

SMC 1/2 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Male Connector
SMC 8-2N
SMC 1/2 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Male Connector
Specifications
| Description | SMC 1/2 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Male Connector |
|---|---|
| End Size | 44204in |
| End Type | National Pipe Thread (NPT) |
| Inch/Metric | Inch |
| Material | 316 Stainless Steel |
| Tube Outside Diameter D | 1/2in, mm |
| Width Across Flats h | 13/16in, mm |
Dimensions
| Dimension A | 22.86mm |
|---|---|
| Dimension B | 21.84mm |
| Dimension I | 28.70mm |
| Dimension L | 38.86mm |
| Dimension d [Min] | 4.82mm |
Description
(SMC 8-2N)
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-810-1-2 |
|---|
