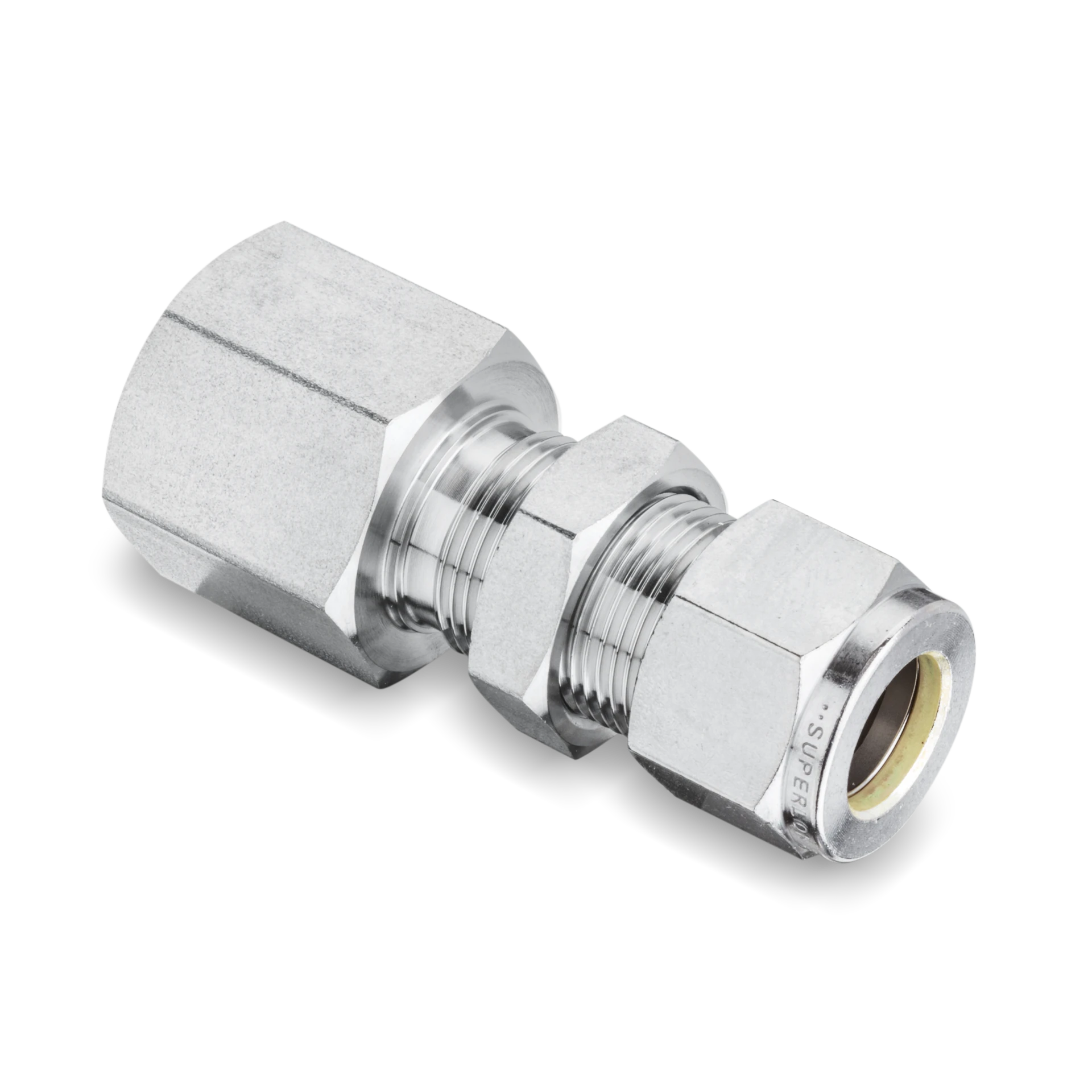

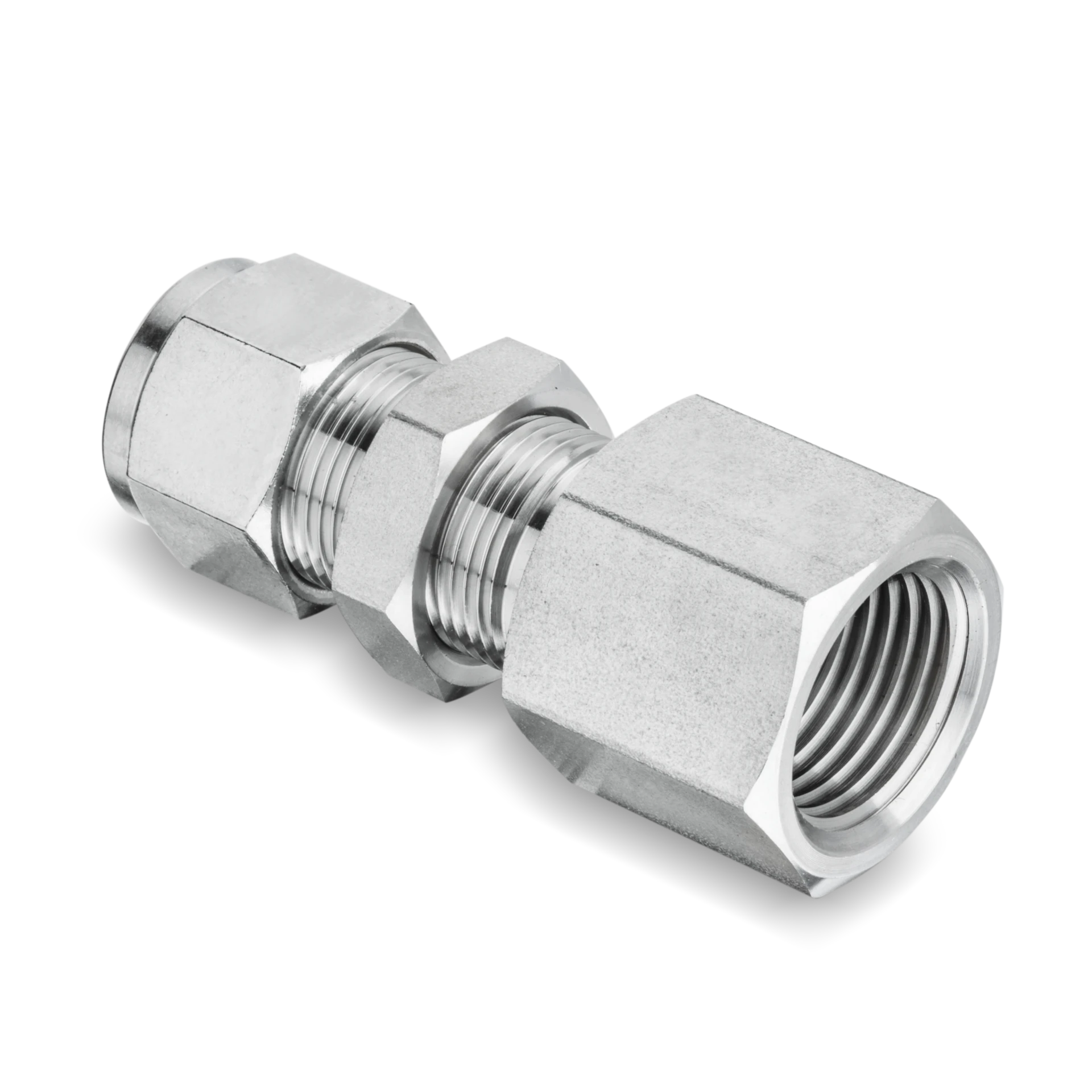

SBFC Bulkhead Female Connectors

Price range: $17.27 through $54.58

Access our complete line of bulkhead female connector options for your fluid system requirements. Our selection ensures reliable through-wall connections. Browse below to instantly request a quote or purchase the bulkhead female connector and female bulkhead connector you need.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 17796 Category: Connector Tube Fittings

Click here for more info

Specifications

End Type	National Pipe Thread (NPT)
Superlok Part Type	Female Connector

Available Sizes

SBFC 2-2N SBFC Bulkhead Female Connectors

SBFC 1/8 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector

$32.07

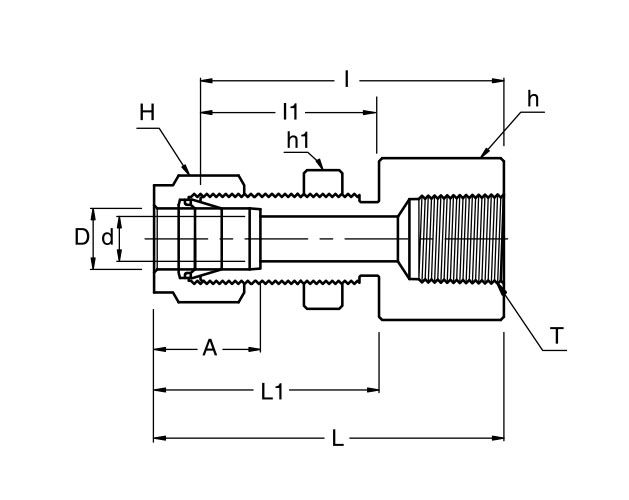

Dimension A	12.70mm
Dimension I	38.10mm
Dimension I1	24.63mm
Dimension L	44.70mm
Dimension L1	31.24mm
Dimension d [Min]	2.28mm

Description	SBFC 1/8 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector
End Size	1/8in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Material	316 Stainless Steel
Pannel Hole Drill Size	8.33mm
Pannel Thickness [Max]	12.70mm
Tube Outside Diameter D	1/8in
Width Across Flats h	9/16in, mm
Width Across Flats h1	1/2in, mm

Swagelok®	SS-200-71-2

SBFC 4-2N SBFC Bulkhead Female Connectors

SBFC 1/4 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector

$17.27

Dimension A	15.24mm
Dimension I	39.62mm
Dimension I1	26.16mm
Dimension L	46.99mm
Dimension L1	33.52mm
Dimension d [Min]	4.82mm

Description	SBFC 1/4 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector
End Size	1/8in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Material	316 Stainless Steel
Pannel Hole Drill Size	11.50mm
Pannel Thickness [Max]	10.16mm
Tube Outside Diameter D	1/4in
Width Across Flats h	5/8in, mm
Width Across Flats h1	5/8in, mm

Swagelok®	SS-400-71-2

SBFC 4-4N SBFC Bulkhead Female Connectors

SBFC 1/4 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector

$17.27

Dimension A	15.24mm
Dimension I	44.45mm
Dimension I1	26.16mm
Dimension L	51.81mm
Dimension L1	33.52mm
Dimension d [Min]	4.82mm

Description	SBFC 1/4 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector
End Size	1/4in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Material	316 Stainless Steel
Pannel Hole Drill Size	11.50mm
Pannel Thickness [Max]	10.16mm
Tube Outside Diameter D	1/4in
Width Across Flats h	3/4in, mm
Width Across Flats h1	5/8in, mm

Swagelok®	SS-400-71-4

SBFC 6-4N SBFC Bulkhead Female Connectors

SBFC 3/8 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector

$23.83

Dimension A	16.76mm
Dimension I	47.75mm
Dimension I1	29.46mm
Dimension L	55.11mm
Dimension L1	36.83mm
Dimension d [Min]	7.11mm

Description	SBFC 3/8 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector
End Size	1/4in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Material	316 Stainless Steel
Pannel Hole Drill Size	14.68mm
Pannel Thickness [Max]	11.17mm
Tube Outside Diameter D	3/8in
Width Across Flats h	3/4in, mm
Width Across Flats h1	3/4in, mm

Swagelok®	SS-600-71-4

SBFC 6M-4N SBFC Bulkhead Female Connectors

SBFC 6 mm Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector

$18.55

Dimension A	15.3mm
Dimension I	44.4mm
Dimension I1	26.2mm
Dimension L	51.80mm
Dimension L1	33.60mm
Dimension d [Min]	4.8mm

Description	SBFC 6 mm Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector
End Size	in
End Type	National Pipe Thread (NPT)
Inch/Metric	Metric
Material	316 Stainless Steel
Pannel Hole Drill Size	11.5mm
Pannel Thickness [Max]	10.2mm
Tube Outside Diameter D	6in
Width Across Flats h	in, 19mm
Width Across Flats h1	in, 16.0mm

Swagelok®	SS-6M0-71-4

SBFC 8-8N SBFC Bulkhead Female Connectors

SBFC 1/2 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector

$38.10

Dimension A	22.86mm
Dimension I	56.38mm
Dimension I1	31.75mm
Dimension L	66.54mm
Dimension L1	41.91mm
Dimension d [Min]	10.41mm

Description	SBFC 1/2 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector
End Size	1/2in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Material	316 Stainless Steel
Pannel Hole Drill Size	19.44mm
Pannel Thickness [Max]	12.70mm
Tube Outside Diameter D	1/2in
Width Across Flats h	1-1/16in, mm
Width Across Flats h1	15/16in, mm

Swagelok®	SS-810-71-8

SBFC 8M-4N SBFC Bulkhead Female Connectors

SBFC 8 mm Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector

$22.85

Dimension A	16.2mm
Dimension I	46.7mm
Dimension I1	28.4mm
Dimension L	53.85mm
Dimension L1	35.55mm
Dimension d [Min]	6.3mm

Description	SBFC 8 mm Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector
End Size	in
End Type	National Pipe Thread (NPT)
Inch/Metric	Metric
Material	316 Stainless Steel
Pannel Hole Drill Size	13.1mm
Pannel Thickness [Max]	11.2mm
Tube Outside Diameter D	8in
Width Across Flats h	in, 19mm
Width Across Flats h1	in, 17.4mm

Swagelok®	SS-8M0-71-4

SBFC 12-12N SBFC Bulkhead Female Connectors

SBFC 3/4 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector

$54.58
