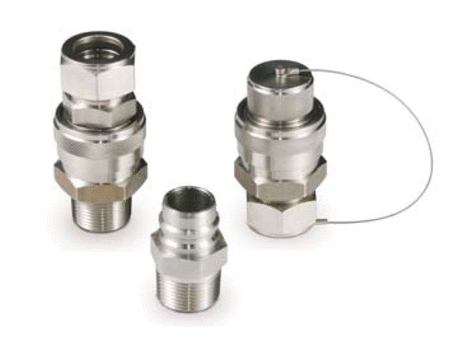

SFQC Full Flow Quick Connect Bodies

Price range: $39.14 through $72.18

Access our SFQC full flow quick connect series featuring simple push-pull operation. Our full flow quick connect bodies provide tool-free connections with unrestricted flow capacity for your fluid system. Browse below to request a quote for your specific component.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18751 Category: Quick Connect Bodies

Click here for more info

Specifications

Inch/Metric	Inch
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	413bar, 600psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature	6.8bar, 100psig
Superlok Part Type	Connect Body

Available Sizes

SFQC2B-F4N SFQC Full Flow Quick Connect Bodies

SFQC 1/4 in. x 1/4 in. Female National Pipe Taper (FNPT) Full Flow Quick Connect Body

$39.14

Dimension A	38.1mm
Dimension D	22.2mm
Dimension F	19.1mm

Description	SFQC 1/4 in. x 1/4 in. Female National Pipe Taper (FNPT) Full Flow Quick Connect Body
End Size	44200in
End Type	Female National Pipe Thread (FNPT) Pipe Taper (PT)
Inch/Metric	Inch
Insertion Depth	0.78in, 19.8mm
Material	316 Stainless Steel, Brass
Orifice [Min]	9.7mm
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	413bar, 600psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ºC) Temperature	275bar, 4000psig

Swagelok®	SS-QF4-B-4PF

SFQC2B-M4N SFQC Full Flow Quick Connect Bodies

SFQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) T Full Flow Quick Connect Body

$44.29

Dimension A	40.0mm
Dimension D	22.2mm
Dimension F	17.5mm

Description	SFQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) T Full Flow Quick Connect Body
End Size	44200in
End Type	Male National Pipe Thread (MNPT)
Inch/Metric	Inch
Insertion Depth	0.78in, 19.8mm
Material	316 Stainless Steel, Brass
Orifice [Min]	6.4mm
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	413bar, 600psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ºC) Temperature	275bar, 4000psig

Swagelok®	SS-QF4-B-4PM

SFQC2B-S4 SFQC Full Flow Quick Connect Bodies

SFQC 1/4 in. x 1/4 in. Tube Outside Diameter Full Flow Quick Connect Body

$52.53

Dimension A	45.7mm
Dimension D	22.2mm
Dimension F	17.5mm

Description	SFQC 1/4 in. x 1/4 in. Tube Outside Diameter Full Flow Quick Connect Body
End Size	44200in
End Type	Array
Inch/Metric	Inch
Insertion Depth	0.78in, 19.8mm
Material	316 Stainless Steel, Brass
Orifice [Min]	4.8mm
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	413bar, 600psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ºC) Temperature	275bar, 4000psig

Swagelok®	SS-QF4-B-400

SFQC2B-S6 SFQC Full Flow Quick Connect Bodies

SFQC 1/4 in. x 3/8 in. Tube Outside Diameter Full Flow Quick Connect Body

$61.70

Dimension A	46.0mm
Dimension D	22.2mm
Dimension F	17.5mm

Description	SFQC 1/4 in. x 3/8 in. Tube Outside Diameter Full Flow Quick Connect Body
End Size	44263in
End Type	Array
Inch/Metric	Inch
Insertion Depth	0.78in, 19.8mm
Material	316 Stainless Steel, Brass
Orifice [Min]	7.1mm
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	413bar, 600psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ºC) Temperature	275bar, 4000psig

Swagelok®	SS-QF4-B-600

SFQC3B-M8N SFQC Full Flow Quick Connect Bodies

SFQC 1/2 in. x 1/2 in. Male National Pipe Taper (MNPT) Full Flow Quick Connect Body

$70.97

Dimension A	52.8mm
Dimension D	33.0mm
Dimension F	27.0mm

Description	SFQC 1/2 in. x 1/2 in. Male National Pipe Taper (MNPT) Full Flow Quick Connect Body
End Size	44198in
End Type	Male National Pipe Thread (MNPT) Pipe Taper (PT)
Inch/Metric	Inch
Insertion Depth	0.81in, 20.6mm
Material	316 Stainless Steel, Brass
Orifice [Min]	12.7mm
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	413bar, 600psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature	6.8bar, 100psig
Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ºC) Temperature	206bar, 3000psig

Swagelok®	SS-QF8-B-8PM

SFQC3B-S8 SFQC Full Flow Quick Connect Bodies

SFQC 1/2 in. x 1/2 in. Tube Outside Diameter Full Flow Quick Connect Body

$72.18
