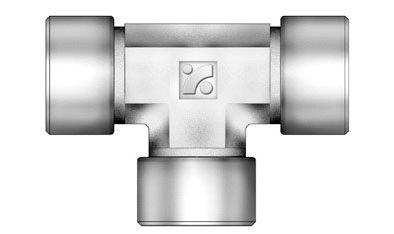

IFT 1/2 in. Female National Pipe Taper (FNPT) Pipe Size Female Tee
Specifications
| Description | IFT 1/2 in. Female National Pipe Taper (FNPT) Pipe Size Female Tee |
|---|---|
| Inch/Metric | Inch |
| Material | 316 Stainless Steel, Steel |
| Pressure Rating (Brass) | 192bar, 2800psig |
| Pressure [Max] | 385bar, 5100psig |
Dimensions
| Dimension A | 74.0mm |
|---|---|
| Dimension E | 18.5mm |
| Dimension H | 25.4mm |
| Dimension L | 37.0mm |
Description
(IFT-8N)
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-8-T |
|---|
