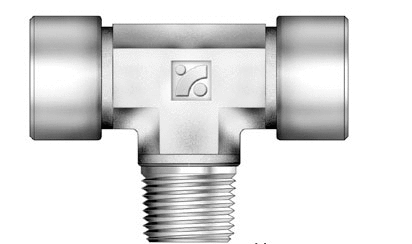

IBT 1/4 in. Female National Pipe Taper (FNPT) x 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Branch Tee
IBT-4N
IBT 1/4 in. Female National Pipe Taper (FNPT) x 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Branch Tee
Specifications
| Description | IBT 1/4 in. Female National Pipe Taper (FNPT) x 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Branch Tee |
|---|---|
| Inch/Metric | Inch |
| Material | 316 Stainless Steel, Steel |
| Pressure Rating (Brass) | 248bar, 3600psig |
| Pressure [Max] | 496bar, 7200psig |
Dimensions
| Dimension A | 58.0mm |
|---|---|
| Dimension E | 7.1mm |
| Dimension H | 17.5mm |
| Dimension L | 29.0mm |
| Dimension S | 26.5mm |
Description
(IBT-4N)
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-4-BT |
|---|
